Samsung Hanwha PNM-9081VQ 20MP H.265 Multi-sensor Outdoor Dome IP Security Camera

Samsung
Add to wishlist
Compare

$2,175.60 $3,687.64

Product price
Additional options total:
Order total:

Samsung Hanwha PNM-9081VQ 20MP H.265 Multi-sensor Outdoor Dome IP Security Camera

Key Features:

  • Max 20MP @ 30fps, 5MP x 4 sensors using one IP address
  • Motorized Vari-focal 3.6 ~ 9.4mm (FOV: 102.5˚ ~ 38.7˚)
  • Triple Codec: H.265, H.264 and MJPEG Multiple streaming

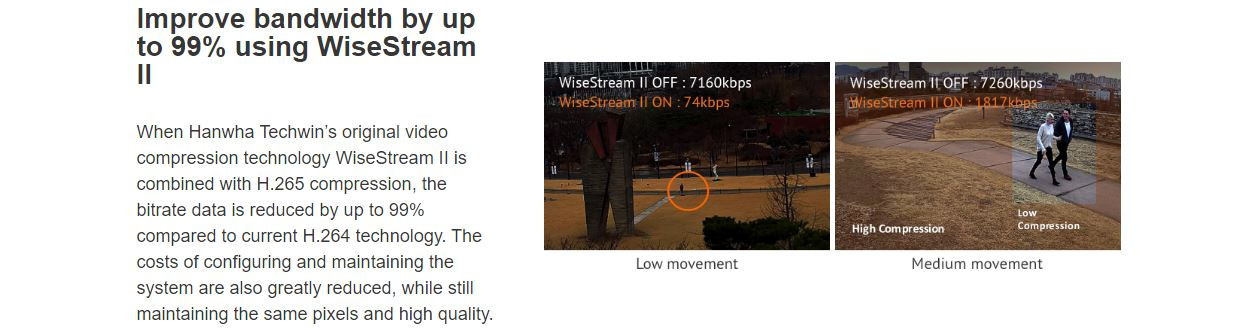

  • WiseStream II compression technology

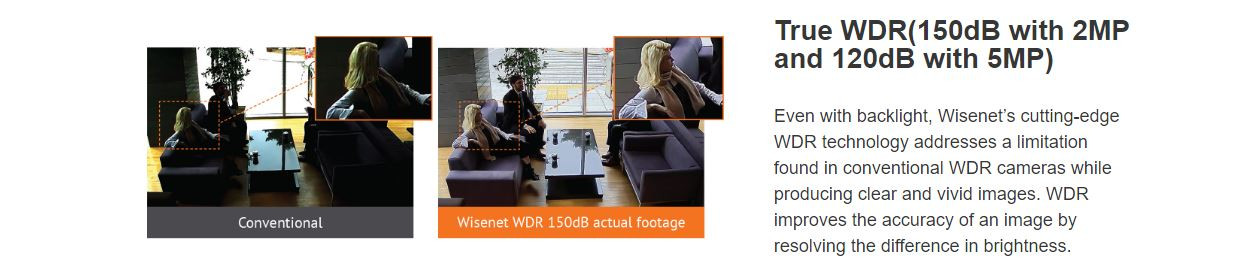

  • WDR 120dB @ 20MP @30fps
  • Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area

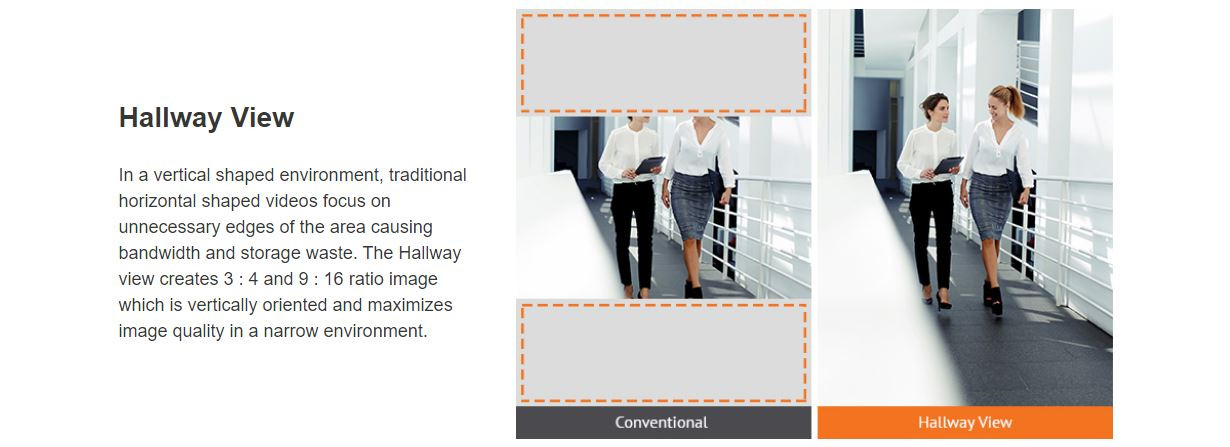

  • Hallway View, all
  • SD cards (each channel has its own)
  • Gyro Sensor for Digital image stabilization
  • Power: HPoE (HPoE adaptor is included) or 12VDC

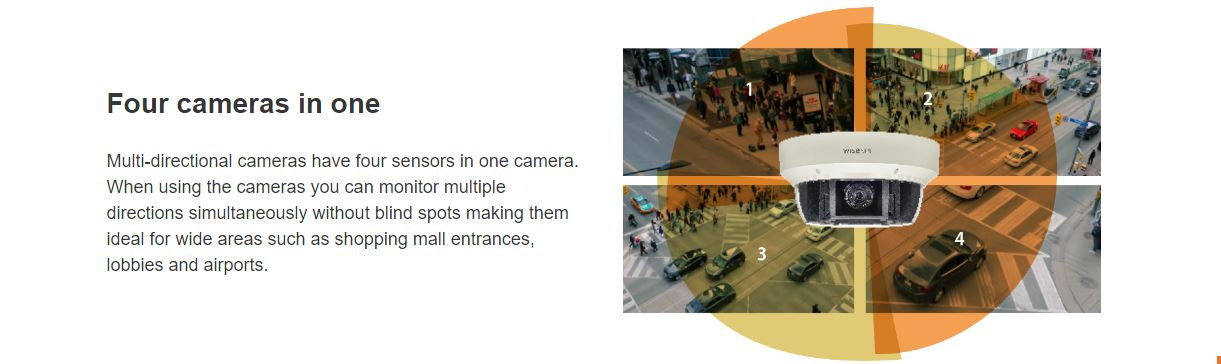

  • Network Vandal Outdoor Multi-sensor Multi-Directional Dome Camera,
  • Weatherproof IP66
  • Vandal Proof IK10,
  • Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F)







Optional Accessories:
  • SBP-300NB Installation box
  • SBP-300WM Gooseneck mount
  • SBP-300B Wall mount base (Ivory)
  • SBP-300CM Pendant mount
  • SBP-300LM Parapet mount (Ivory)
  • SBP-300PM Pole Mount Adapter (Ivory)
  • SBP-300KM Corner Mount Adapter (Ivory)
  • SBP-317HM Hanging Mount (Indoor)
  • SHD-317F Indoor 2X2 drop ceiling tile flush mount
  • SBP-329HM Mounting Cap (Outdoor)

SKU: PNM-9081VQ Categories: , ,
Video
Imaging Device 1/1.8″ 6MP CMOS: each CH
Effective Pixels 3096(H)x2094(V): each CH
Min. Illumination Color: 0.07Lux(F1.2, 1/30sec)(30IRE)
B/W: 0.007Lux (F1.2, 1/30sec)(30IRE)
Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation
Lens
Focal Length (Zoom Ratio) 3.6~9.4mm(2.6x) motorized varifocal
Max. Aperture Ratio F1.2(Wide)~F2.4(Tele)
Angular Field of View H: 102.5˚(Wide)~38.7˚(Tele), V: 74.2˚(Wide)~29.0˚(Tele), D: 135.5˚(Wide)~48.6˚(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris, P iris
Pan / Tilt / Rotate

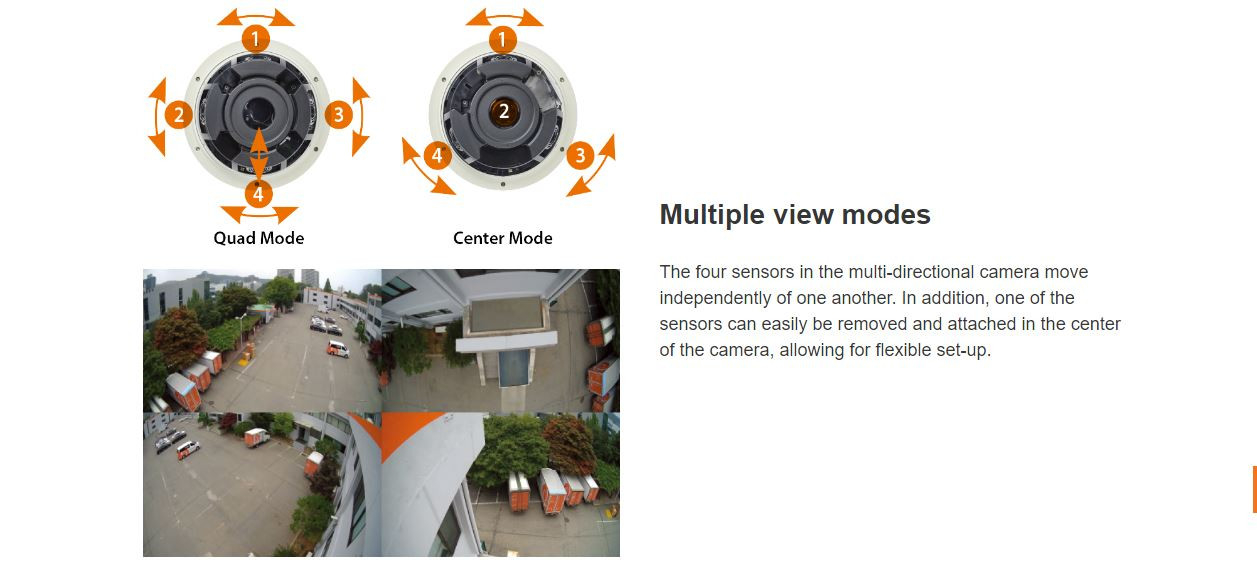

Pan / Tilt / Rotate Range Quad mode: Pan +/-30˚, Tilt 10˚ ~ 41˚, Rotate +-90˚
Center mode: Pan +/-60˚, Tilt 10˚ ~ 41˚ / 10˚ ~ 90˚(CH2/Center), Rotate +-90˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggers
Alarm output
Network
Ethernet RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Resolution 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×576, 720×480, 640×480, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(Each CH)
Application Programming Interface ONVIF Profile S
SUNAPI(HTTP API)
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory 5GB RAM, 1280MB Flash
Environmental
Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
Electrical
Input Voltage HPoE(IEEE802.3bt), 12VDC
Power Consumption HPoE: Max 33.6W
12VDC: Max 28.8W
Mechanical
Color / Material Ivory / Aluminum
Product dimensions / weight Ø314mmx152mm, 4890g

Additional Information

Manufacturer:
Samsung
Product Type:
Cameras
Environmental:
Outdoor
Lens Size:
3.6~9.4mm
Lens Type:
Motorized (Automatic Zoom) Lens
Technology:
Network (IP)
Camera Style:
Dome
Key Features:
Weatherproof
Key Features:
Vandal Proof
Vandal Proof:
Yes
Weatherproof:
Yes
Key Features:
360-degree Hemispheric View
Max. FPS and Resolution:
30fps at 2560 x 1920
Resolution:
20MP
Specialized Camera Feature:
Multi-sensor
Warranty:
3-year Manufacturer Warranty
Sensor Size:
1/1.8″
Sensor Type:
CMOS
Optical Zoom:
2.6x Optical Zoom
Color:
White
Compression:
H.265
Compression:
H.264
Compression:
MJPEG
Protection Code:
IK10
Protection Code:
IP66
Datasheet:
samsung-pnm-9081vq_specs_170717-A1.pdf
